Efficient Distribution for Gentle Product Handling

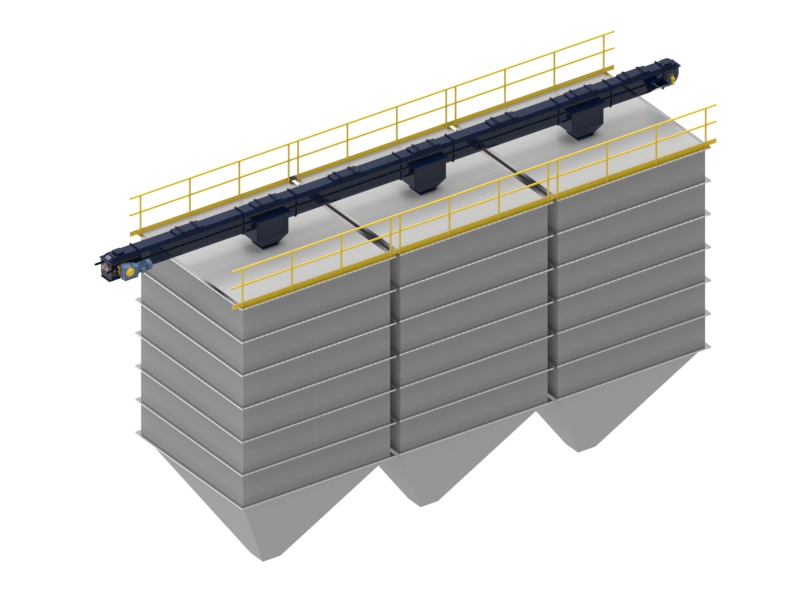

IRONCORE™ Distribution Conveyors deliver high-capacity and controlled product distribution while preserving product quality. Engineered with a low-friction paddle design and inlet level control, you can achieve reliable throughput into storage bins for fragile products. The conveyor features access points for product visibility and simplified maintenance.
-
Gentle and energy-efficient paddle arrangement that maximizes yield of fragile products -
Continuous return rail reduces operating noise by up to 50% improving workplace conditions
-

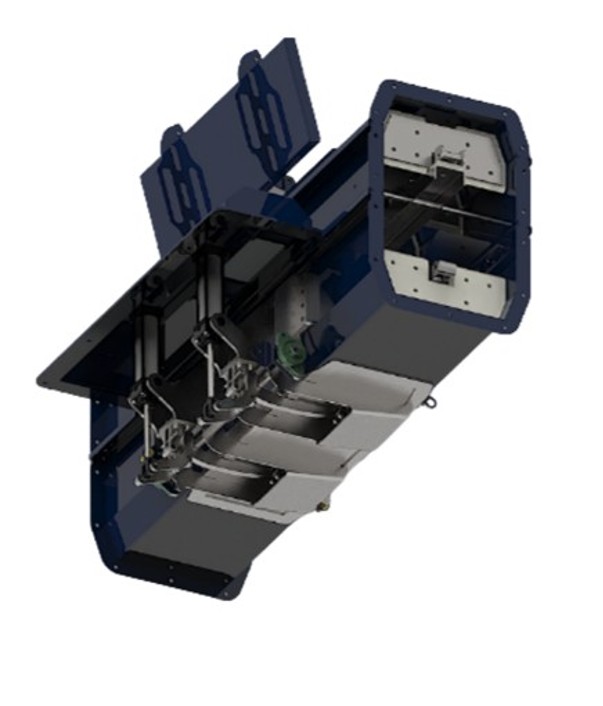

Oversized bolted access ports for easy service
-
Compact footprint and flexible configurations to meet your needs
-
Increased safety for operators with lockout/tagout-ready access points
-
Reduced contamination through antistatic wiper paddles and smooth discharge points that reduce buildup
Features
- Electric drive with integrated gearmotor
- Four bolt flange bearings
- IRONCORE™ round take-ups on the head section
- Diaphragm style plug switch at head discharge

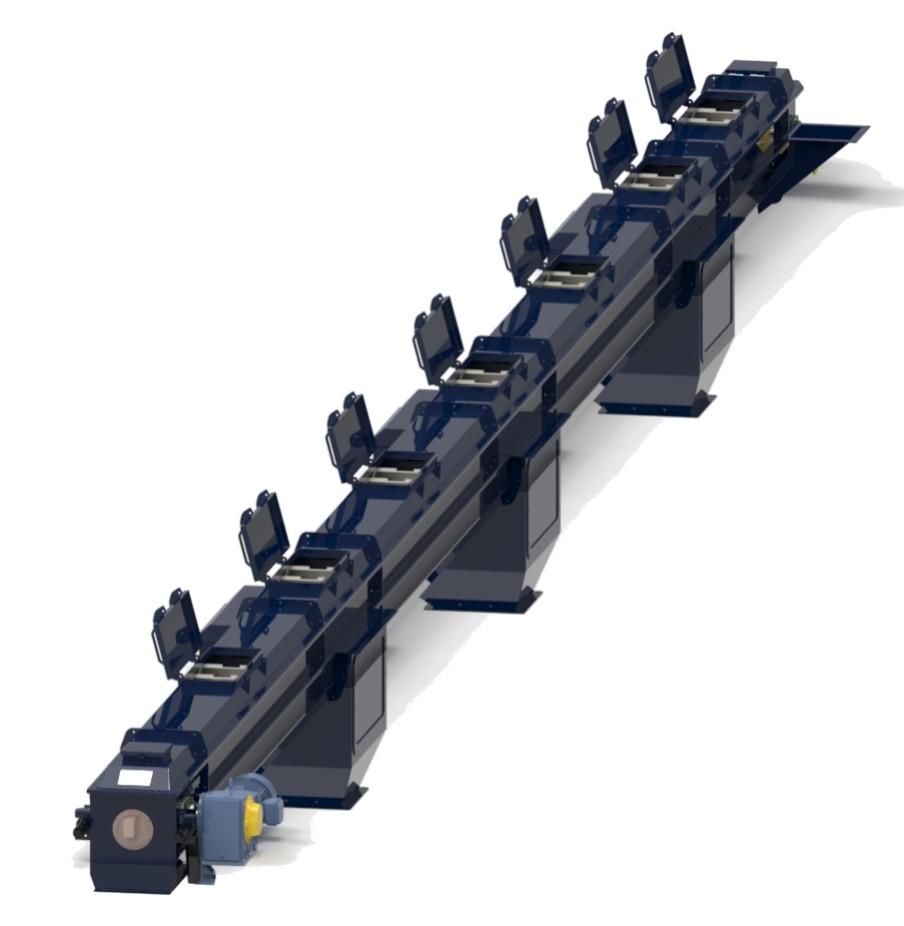

- Bolted access ports
- Bolted construction for assembly and maintenance ease
- Antistatic wiper paddles

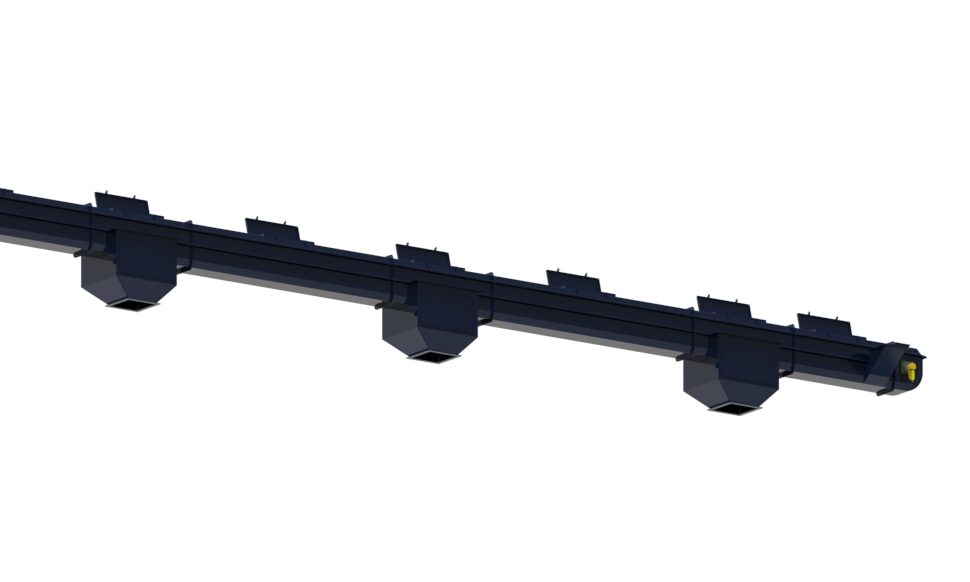

- Quick acting flush intermediate discharges with failsafe protection
- Fully enclosed and sealed housing
- Tail section with contoured bottom close tolerance casing
- Low RPM and chain speed for gentler product handling
Specifications
- Nord Gearmotor; other drive units available
- Whirligig Zero Speed Sensor
- ½” UHMW head and tail shaft seals
- 308 Pintle chain with ¼” thick continuous welded backing plates
- Pneumatically actuated over-center cam intermediate discharges
- Bearing mounted pivot point for precise position repeatability
- Single coil – spring return solenoid controlled intermediate discharges
- Inductive proximity sensing of open and closed discharge positions
- Multiple voltage combinations 24vdc,120vac, 230vac, 460v 3ph, 575v 3ph
- Capacity expectation of 12-14 tons per hour on 28-35 lbs / cu.ft dry extruded product
