Cleaner Inputs for Better Outputs
The IRONCORE™ Rotary Cleaner system combines effective screening performance with simple maintenance and easy access for adjustments. Its durable construction, compact design, and high-capacity operation help keep your process moving.

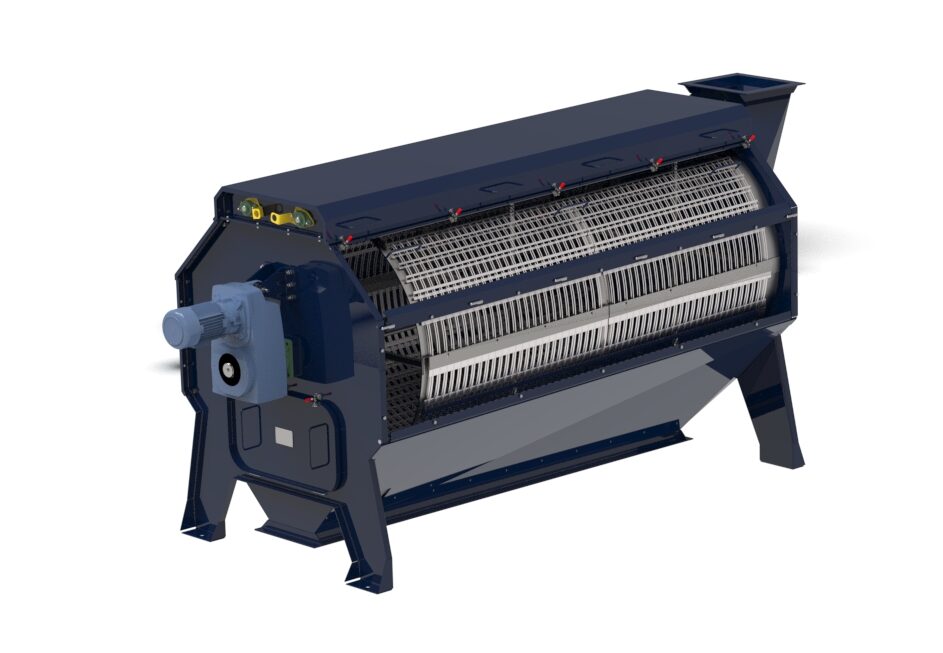

Cover Off, Door Open

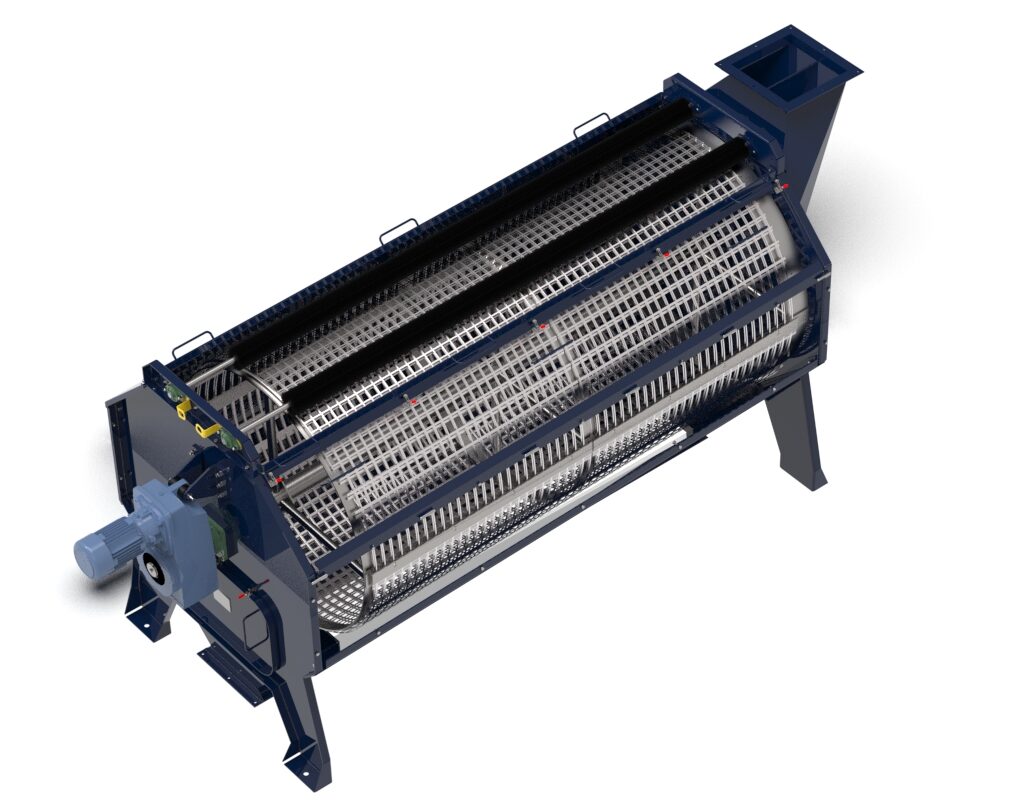

Covers Off, Door Open

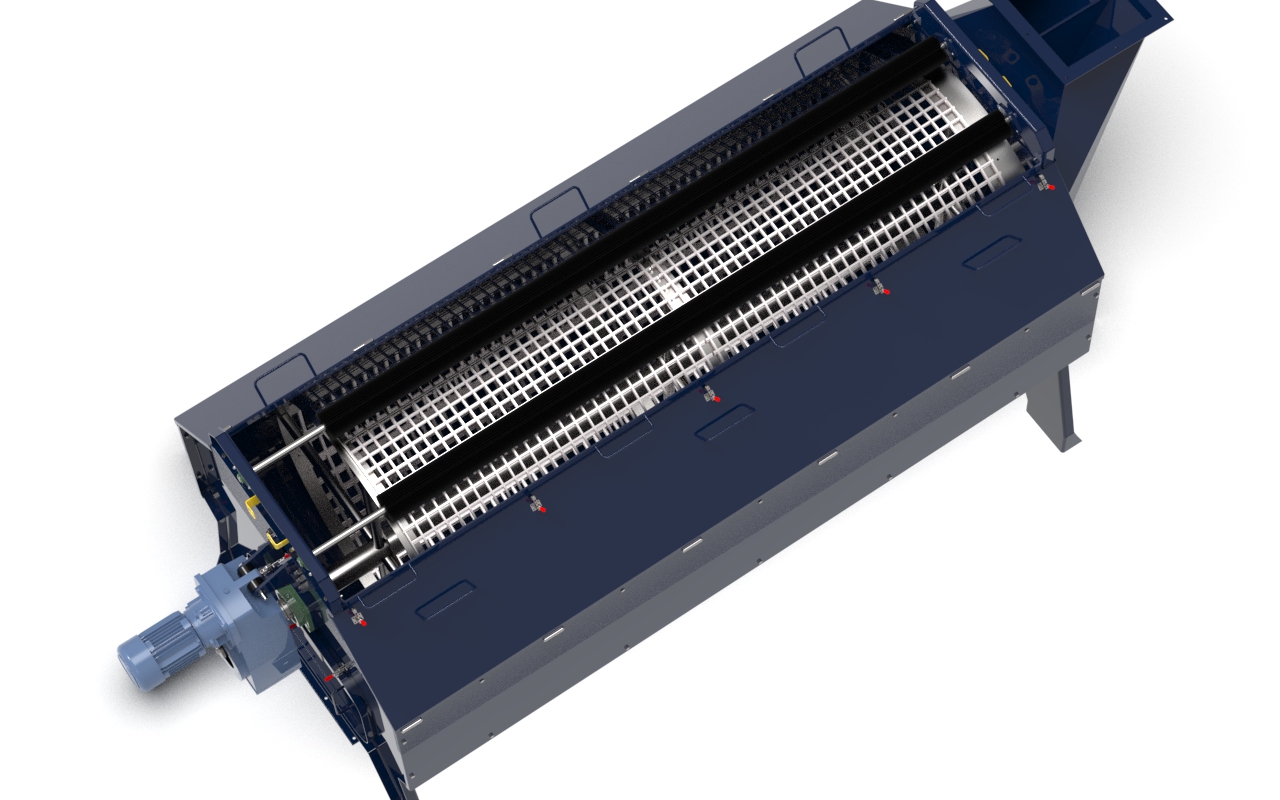

Dual Brushes

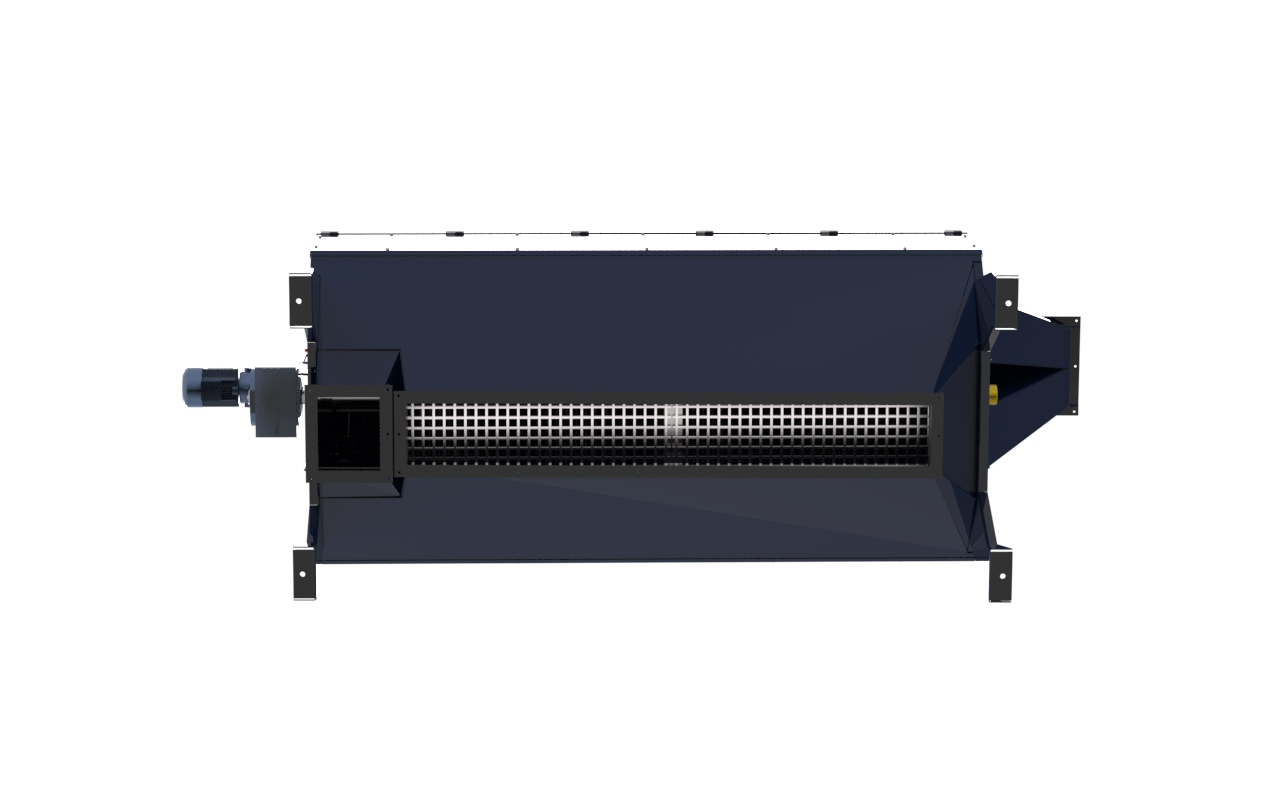

Bottom View
-
Effective cleaning of bulk materials with the self-clean dual brush system -
High-efficiency direct drive design
-
Tool-free assembly for easy access to brushes and mesh screens
-
Protects your downstream equipment by removing contaminants
-
Gentle handling of product via directional inlet chutes
-
Improved working conditions through low-noise operation
-
Maximizes your floor space with a sleek compact design and lower height profile
Features
- Ideal for pet food ingredients, aquatic feed products, grains, seeds and other bulk materials.
- Electric drive with integrated gearmotor
- Four-bolt flange bearings
- Operation verification through sensor indication
- Bolted construction for easy assembly and maintenance
- Fully enclosed and sealed housing
- Low RPM for gentler product handling
Specifications
- Pre-clean throughput of 50–200 MT/h reel and 200–400 MT/h rotary drum
- RC-150 – 36” Dia x 72” Long – 150 MT/hr (Fertilizer) – 5500 bu/hr (Grains)
- RC-200 – 42” Dia x 84” Long – 200 MT/hr (Fertilizer) – 7500 bu/hr (Grains)
- RC-250 – 48” Dia x 96” Long – 250 MT/hr (Fertilizer) – 9500 bu/hr (Grains)
- ¾” and 1” square openings with custom requests available
- Nord Gearmotor – Shaft mount design
- Whirligig Zero Speed Sensor
- ½” UHMW inlet and discharge double shaft seals
- Inductive proximity sensing of open and closed discharge positions
Options
- Construction finishes such as enamel paint, powder coating or galvanized are available on carbon steel materials
- 304 Stainless Steel construction with additional clean design features are available
- Multiple voltage combinations in 24vdc,120vac, 230vac, 460v 3ph, 575v 3ph
